Legion Dev

Bar Chart

Cards 18

About

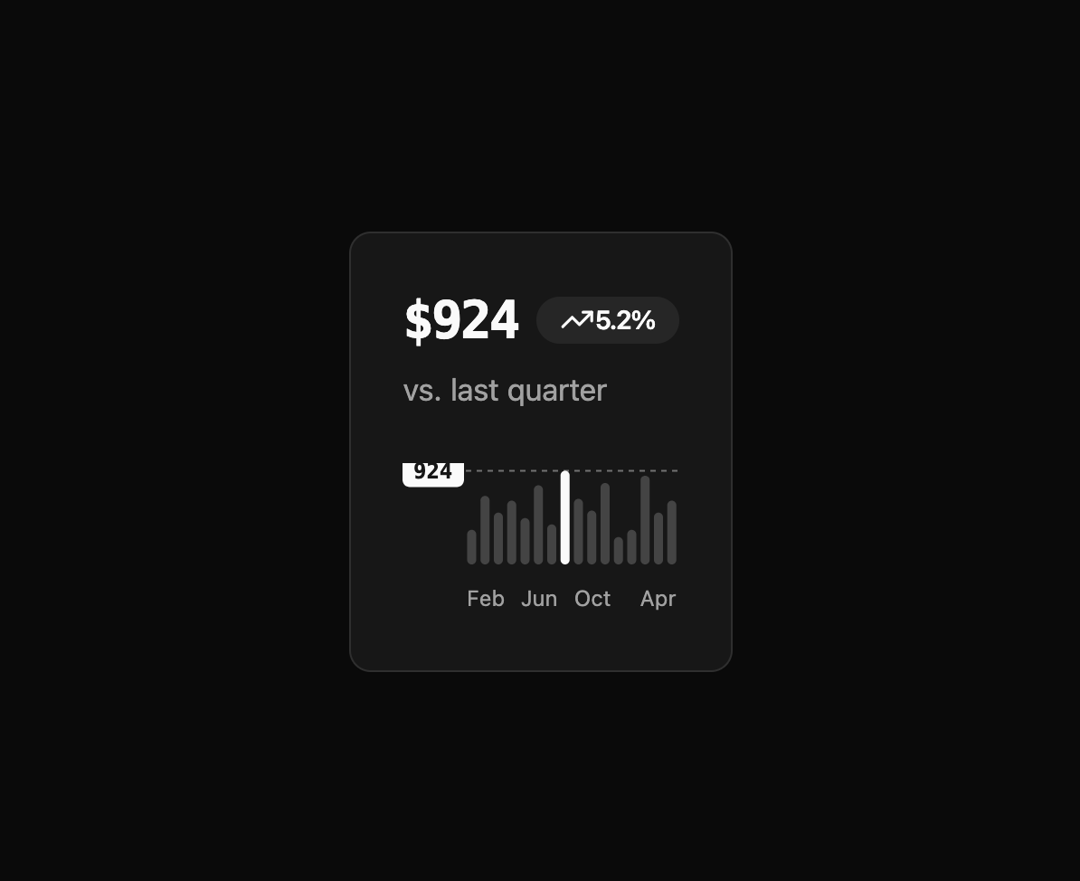

Here is Bar Chart component

Built with React and Tailwind. Copy the prompt and paste it into Claude Code, Cursor or Lovable: your agent adds Bar Chart to your project and fits it to your theme.

Code

How Bar Chart is used: the demo's code. The component's own source comes with a free account.

Usage.tsx

"use client";

import { TrendingUp } from "lucide-react";
import { Bar, BarChart, Cell, XAxis, ReferenceLine } from "recharts";
import React from "react";
import { AnimatePresence } from "motion/react";
import {
  Card,
  CardContent,
  CardDescription,
  CardHeader,
  CardTitle,
} from "@/components/ui/card";
import { ChartConfig, ChartContainer } from "@/components/ui/bar-chart";
import { Badge } from "@/components/ui/badge";
import { cn } from "@/lib/utils";
import { useMotionValueEvent, useSpring } from "framer-motion";



const CHART_MARGIN = 35;

const chartData = [
  { month: "January", desktop: 342 },
  { month: "February", desktop: 676 },
  { month: "March", desktop: 512 },
  { month: "April", desktop: 629 },
  { month: "May", desktop: 458 },
  { month: "June", desktop: 781 },
  { month: "July", desktop: 394 },
  { month: "August", desktop: 924 },
  { month: "September", desktop: 647 },
  { month: "October", desktop: 532 },
  { month: "November", desktop: 803 },
  { month: "December", desktop: 271 },
  { month: "January", desktop: 342 },
  { month: "February", desktop: 876 },
  { month: "March", desktop: 512 },
  { month: "April", desktop: 629 },
];

const chartConfig = {
  desktop: {
    label: "Desktop",
    color: "var(--secondary-foreground)",
  },
} satisfies ChartConfig;

export default function ValueLineBarChart() {
  const [activeIndex, setActiveIndex] = React.useState<number | undefined>(
    undefined
  );

  const maxValueIndex = React.useMemo(() => {
    // if user is moving mouse over bar then set value to the bar value
    if (activeIndex !== undefined) {
      return { index: activeIndex, value: chartData[activeIndex].desktop };
    }
    // if no active index then set value to max value
    return chartData.reduce(
      (max, data, index) => {
        return data.desktop > max.value ? { index, value: data.desktop } : max;
      },
      { index: 0, value: 0 }
    );
  }, [activeIndex]);

  const maxValueIndexSpring = useSpring(maxValueIndex.value, {
    stiffness: 100,
    damping: 20,
  });

  const [springyValue, setSpringyValue] = React.useState(maxValueIndex.value);

  useMotionValueEvent(maxValueIndexSpring, "change", (latest) => {
    setSpringyValue(Number(latest.toFixed(0)));
  });

  React.useEffect(() => {
    maxValueIndexSpring.set(maxValueIndex.value);
  }, [maxValueIndex.value, maxValueIndexSpring]);

  return (
    <Card>
      <CardHeader>
        <CardTitle className="flex items-center gap-2">
          <span
            // ✅ UPDATED FONT CLASS
            className={cn("font-mono", "text-2xl tracking-tighter")}
          >
            ${maxValueIndex.value}
          </span>
          <Badge variant="secondary">
            <TrendingUp className="h-4 w-4" />
            <span>5.2%</span>
          </Badge>
        </CardTitle>
        <CardDescription>vs. last quarter</CardDescription>
      </CardHeader>
      <CardContent>
        <AnimatePresence mode="wait">
          <ChartContainer config={chartConfig}>
            <BarChart
              accessibilityLayer
              data={chartData}
              onMouseLeave={() => setActiveIndex(undefined)}
              margin={{
                left: CHART_MARGIN,
              }}
            >
              <XAxis
                dataKey="month"
                tickLine={false}
                tickMargin={10}
                axisLine={false}
                tickFormatter={(value) => value.slice(0, 3)}
              />
              <Bar dataKey="desktop" fill="var(--color-desktop)" radius={4}>
                {chartData.map((_, index) => (
                  <Cell
                    className="duration-200"
                    opacity={index === maxValueIndex.index ? 1 : 0.2}
                    key={index}
                    onMouseEnter={() => setActiveIndex(index)}
                  />
                ))}
              </Bar>
              <ReferenceLine
                opacity={0.4}
                y={springyValue}
                stroke="var(--secondary-foreground)"
                strokeWidth={1}
                strokeDasharray="3 3"
                label={<CustomReferenceLabel value={maxValueIndex.value} />}
              />
            </BarChart>
          </ChartContainer>
        </AnimatePresence>
      </CardContent>
    </Card>
  );
}

interface CustomReferenceLabelProps {
  viewBox?: {
    x?: number;
    y?: number;
  };
  value: number;
}

const CustomReferenceLabel: React.FC<CustomReferenceLabelProps> = (props) => {
  const { viewBox, value } = props;
  const x = viewBox?.x ?? 0;
  const y = viewBox?.y ?? 0;

  // we need to change width based on value length
  const width = React.useMemo(() => {
    const characterWidth = 8; // Average width of a character in pixels
    const padding = 10;
    return value.toString().length * characterWidth + padding;
  }, [value]);

  return (
    <>
      <rect
        x={x - CHART_MARGIN}
        y={y - 9}
        width={width}
        height={18}
        fill="var(--secondary-foreground)"
        rx={4}
      />
      <text
        className="font-mono"
        fontWeight={600}
        x={x - CHART_MARGIN + 6}
        y={y + 4}
        fill="var(--primary-foreground)"
      >
        {value}
      </text>
    </>
  );
};

Dependencies
